Samples

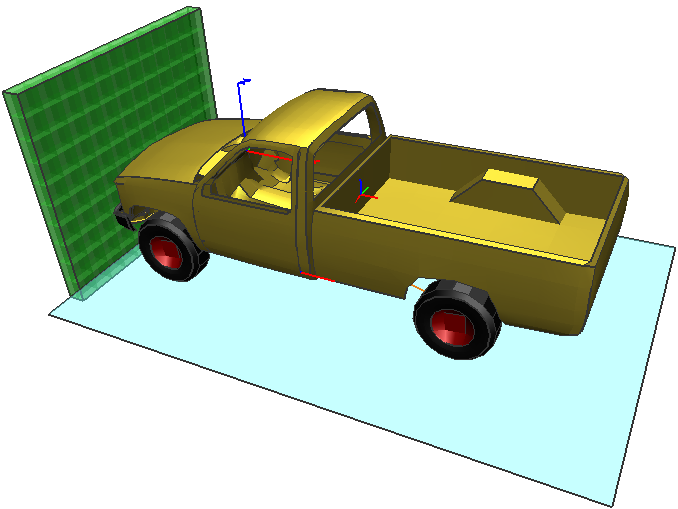

Truck

A simple frontal crash simulation

truck1_RESULT.erfh5.gz

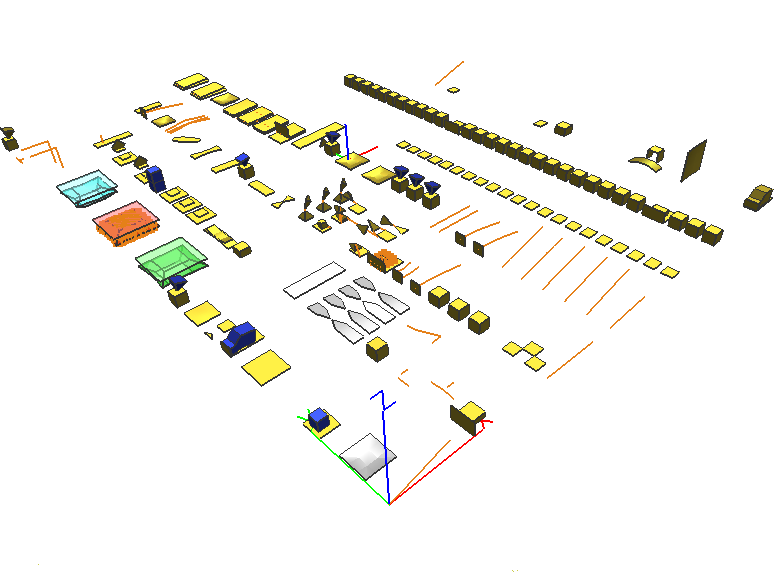

Allinone

(Almost) All "VPS-Explicit" features in one single file

allinone_RESULT.erfh5.gz

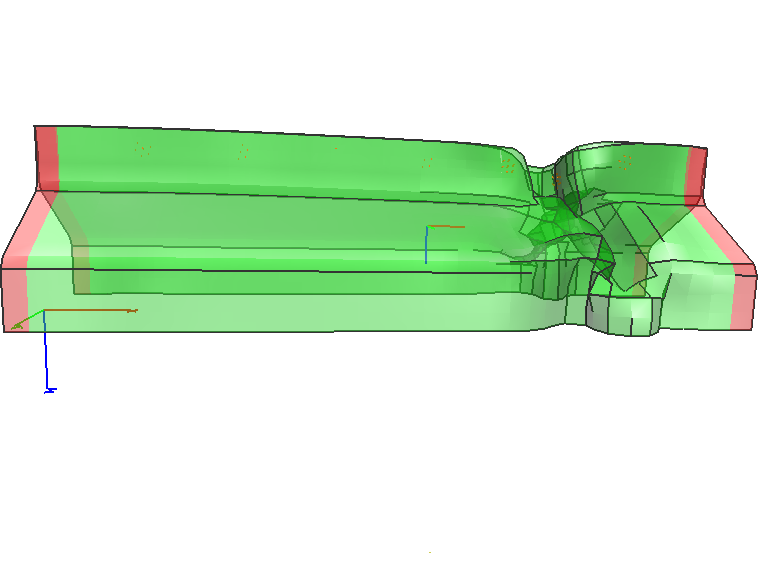

Boxbeam

A Boxbeam with PLINK spotwelds

plink_RESULT.erfh5.gz

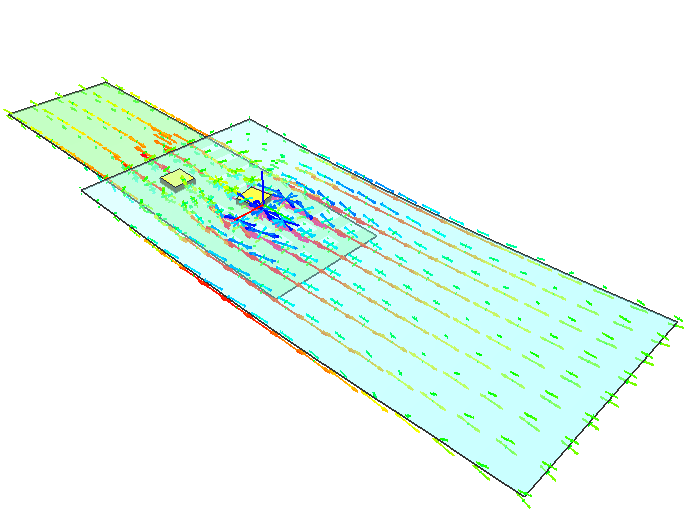

Eprouvette

A simple tensile test using the CDH spotweld modeling technique

eprouvette_RESULT.erfh5.gz

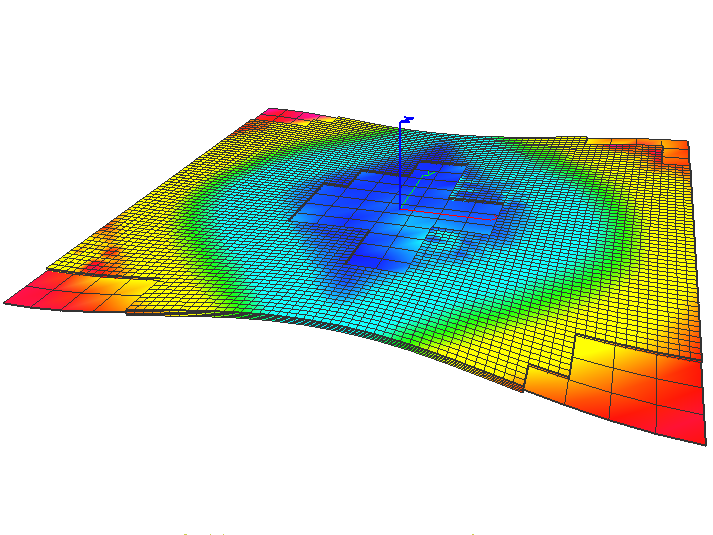

SSR I

A tensile test demonstrating the Shell-Solid-Remeshing technique

shell_RESULT.erfh5.gz: The 1st sub-model containing the original shells
solid_RESULT.erfh5.gz: The 2nd sub-model containing the created solids
mmc.erfh5.gz: This file contains HDF5 external links pointing to the sub-models

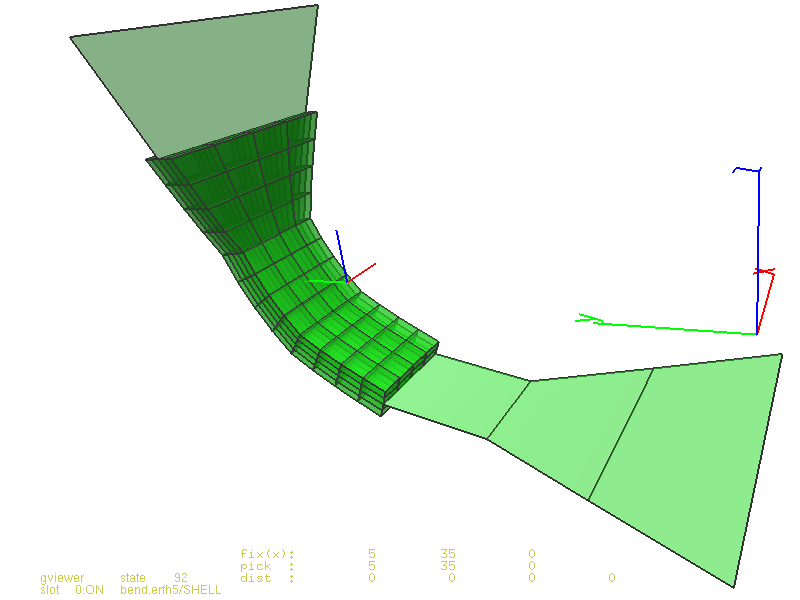

SSR II

A bending test demonstrating the Shell-Solid-Remeshing technique

bshell_RESULT.erfh5.gz: The 1st sub-model containing the original shells
bsolid_RESULT.erfh5.gz: The 2nd sub-model containing the created solids
bend.erfh5.gz: This file contains HDF5 external links pointing to the sub-models

FPM

A simple folded airbag inflation using the Finite-Pointset-Method

f1fpmleak_RESULT.erfh5.gz

EGM I

The Eigenmodes of a rectangular plate

rtc3_cmplx.tgz: IMP_DYNA_GFRP_RTC3_EGM_ERF.pc, IMP_DYNA_GFRP_RTC3_EGM_ERF-STAGE{1,2,4}_RESULT.erfh5

Note:

In the Eigenmode files (suffix "_EGM.erfh5") of the solver releases 2010 and 2011 all Eigenvectors are stored together in one single ERF multientityresults block under the entity "NODE" and the variable "EIGEN_VECT". The storage order is modes:nodes:DOFs.

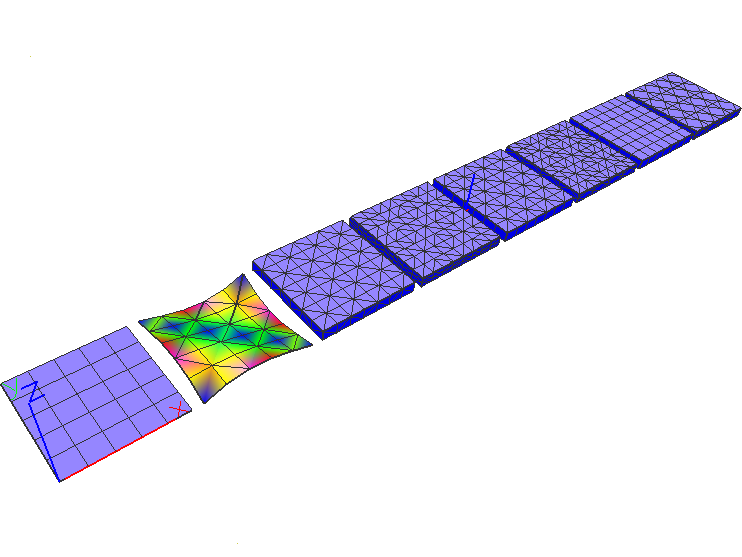

EGM II

An Eigenmode case for different types of elements: PENTA15/PENTA6/HEXA20/HEXA8/TETRA4/TETRA10/SHELL

element_test.tgz: element_test.pc, element_test_EGM.erfh5, element_test_RESULT.erfh5

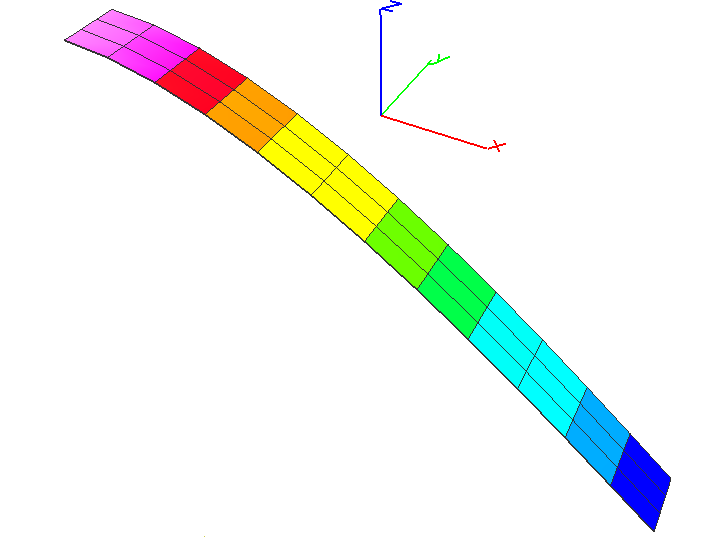

Linear Statics using Puck Failure Criteria

A composite plate under bending: Composites output includes the puck failure criteria

puck.tgz: Inputdeck and ERF file
