Videos and datas here attached will allow you to learn the following mains steps in Die Face Design with PAM-DIEMAKER for CATIA V5.

Several geometry files are available to well follow each of theses steps.



Front Hood Reinforcement - Simple Free Part Preparation - From Die Face Design to Simulation

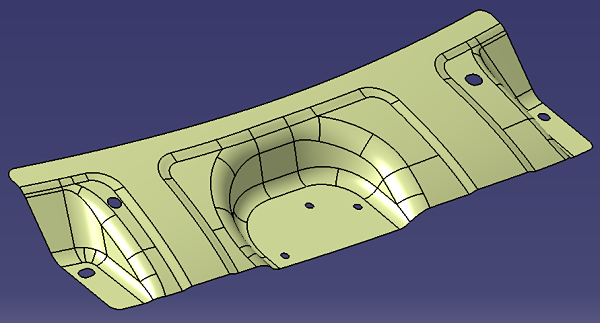

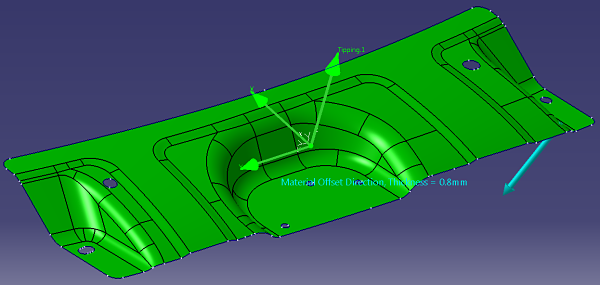

  • Part Definition, Material Definition, Mode Definition, Tipping Definition

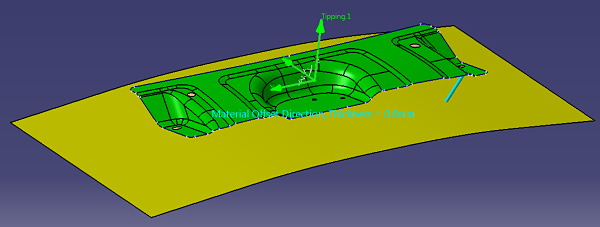

  • Part Preparation with Holes filling, Blankholder Definition with Part On Binder

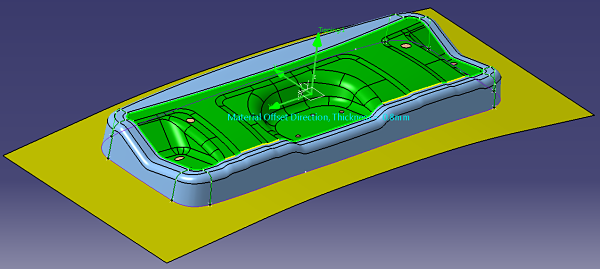

  • Addendum Frame, Die Opening Line (DOL),Profiles, Addendum Surface

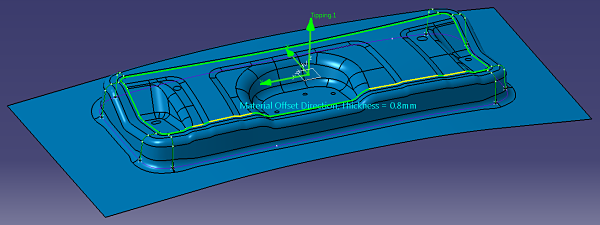

  • Fillet Definition with Variable Radius

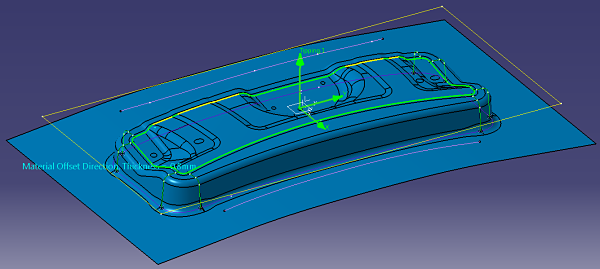

  • Line Bead definition, Blank Outline using rectangular pattern

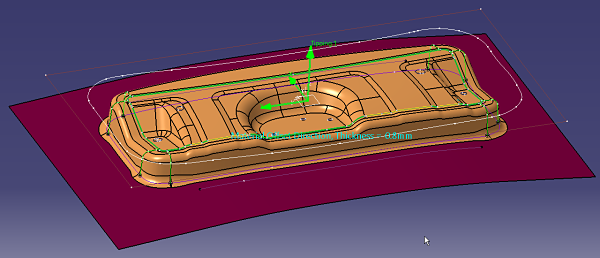

  • Export to PAM-STAMP: Process and Tools definition

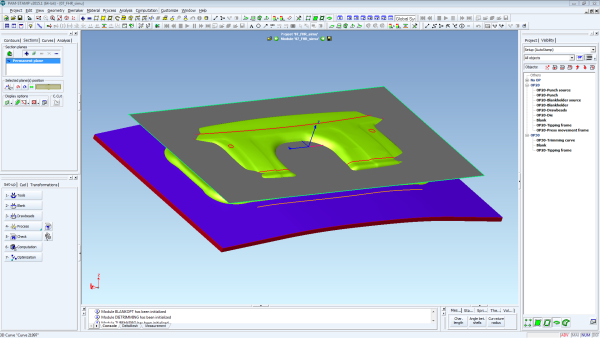

  • Import tools and data from Die Face Design in PAM-STAMP, complete setup in PAM-STAMP until computation

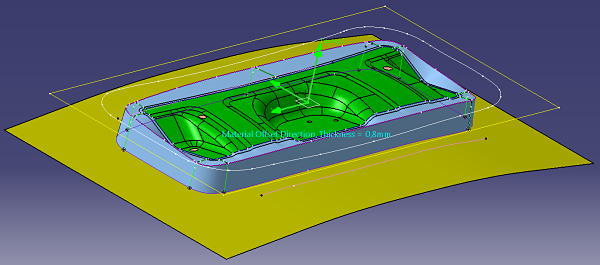

  • Addendum improvements with usage of Bar Height, model update until export

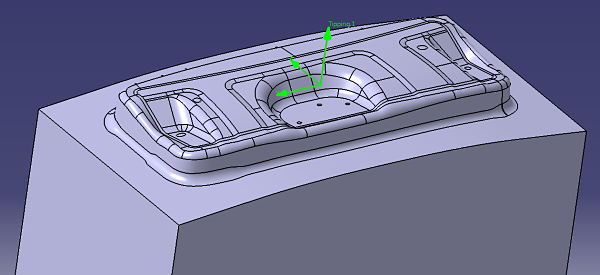

  • Solid creation by spliting
