08 Cross Member - Free Part
To view the full version of this page (or to download files), please log in or create a new account
ファイルをダウンロード
LOG IN FIRST
CrossMember_Simple_Free_Part_Geometry.zip (26.71 MB)
LOG IN FIRST CrossMember_Simple_Free_Part_Videos.zip (39.4 MB)
Videos and datas here attached will allow you to learn the following mains steps in Die Face Design with PAM-DIEMAKER for CATIA V5.
Several geometry files are available to well follow each of theses steps.
Cross Member - Simple Free Part - User Defined Tree Type Style

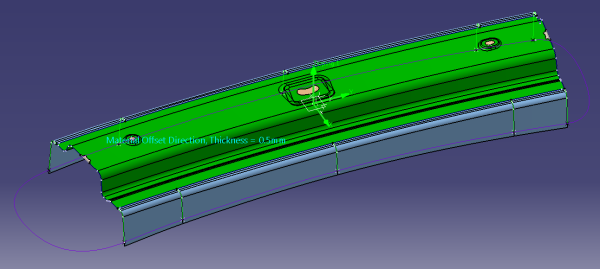

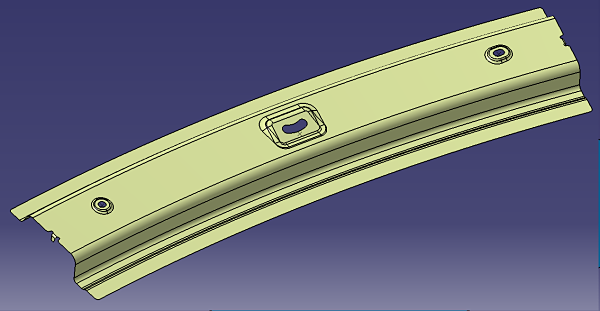

- Part Definition with Flanges Domains identification, Free Simple Part Mode Definition, Tipping Definition, Part Preparation: Unfillet corners, Holes Filling and Rolling Cylinder, Addendum frame with Construction Surface, Profiles Definition, DOL Definition with Curve 3D modifications, Partial Addendum Surfaces Creation between Profiles

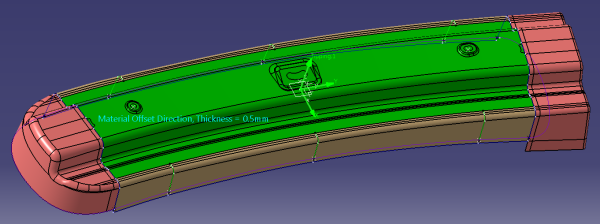

- First Addendum Head Definition based on Profiles and DOL with End Radius Modifications and Variable End Fillet. Aggregation of Partial Addendums, then Addendum Frame Definition for Second Addendum Head build with Lenght Limit Method

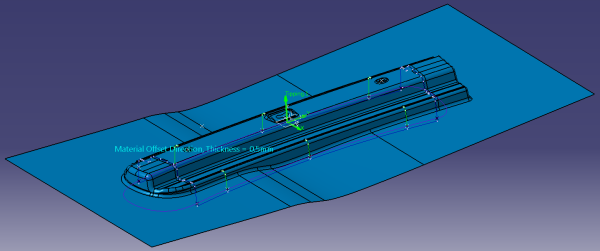

- Advanced Blankholder Definition using Fitting, Multi-Profiles Blankholder, Diemaker Fillet, Diemaker Split, Outlines, Diemaker Transition. Finally Diemaker Fillet Definition.
