07 Cross Member - Symmetric Part
To view the full version of this page (or to download files), please log in or create a new account
Download the file(s)
LOG IN FIRST
CrossMember_Simple_Full_Symmetric_Part_Geometry.zip (15.62 MB)
LOG IN FIRST CrossMember_Simple_Full_Symmetric_Part_Videos.zip (19.05 MB)
Videos and datas here attached will allow you to learn the following mains steps in Die Face Design with PAM-DIEMAKER for CATIA V5.
Several geometry files are available to well follow each of theses steps.
Cross Member - Simple Full Symmetric Part

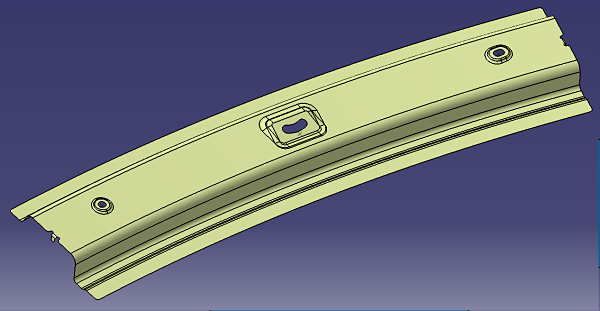

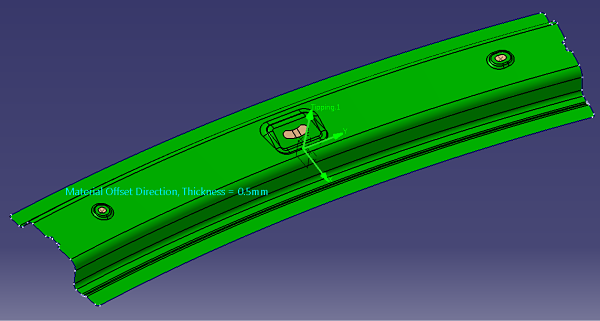

- Part Definition with Flanges Domains identification, Mode definition Simple Full Symmetric Part, Tipping Definition with Undercut Check, Part Preparation with Holes Filling

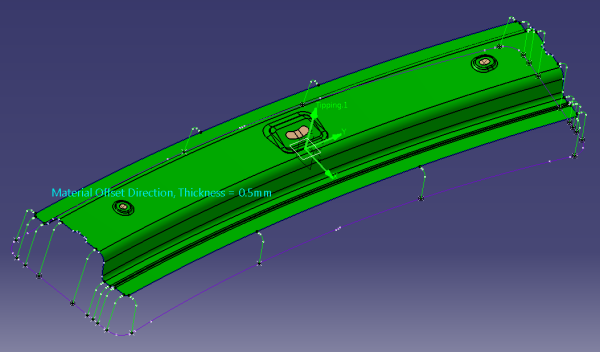

- Addendum Frame Definition with Construction Surface, DOL Definition with Curve 3D modifications, Profiles Definition with local Changes

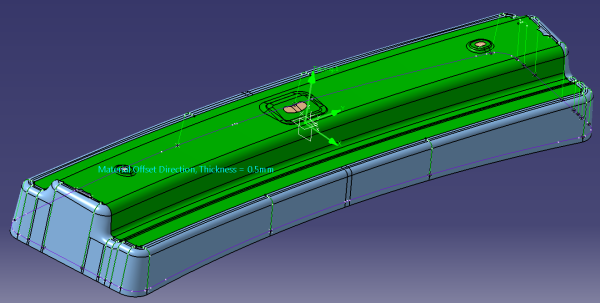

- Addendum Surface Definition with Surfaces to remove. Bridging Curves used locally, Addendum recreation using Profiles as Limits and Surface Patches using Internal Edges for a better and smoother definition. Aggregation of all Addendums. Last Part Preparation with Holes Filling.
