03 OP30 and OP40 Trimming designs

To view the full version of this page (or to download files), please log in or create a new account

Download the file(s)
LOG IN FIRST 03_Liftgate_OP30_OP40_VIDEOS.zip (19.87 MB)
LOG IN FIRST 03_Liftgate_OP30_OP40_DATA.zip (63.26 MB)

The attached videos will show the OP30 and OP40 with the trim segments definition:

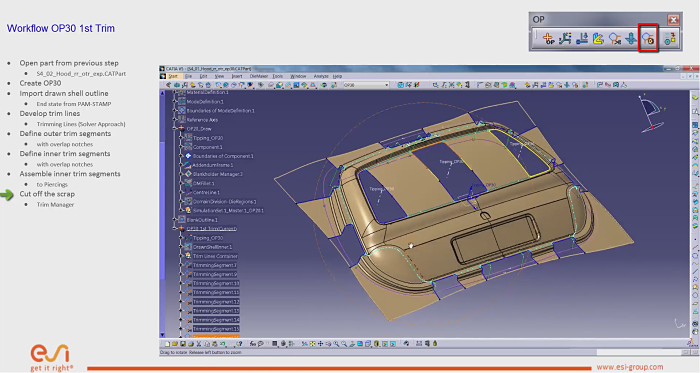

  • OP30 creation,
    • Drawn shell import, Trim lines development, Outer trim segments creation, Inner trim segment creation, Assembly of the inner trim segments
    • Trim manager with scraps

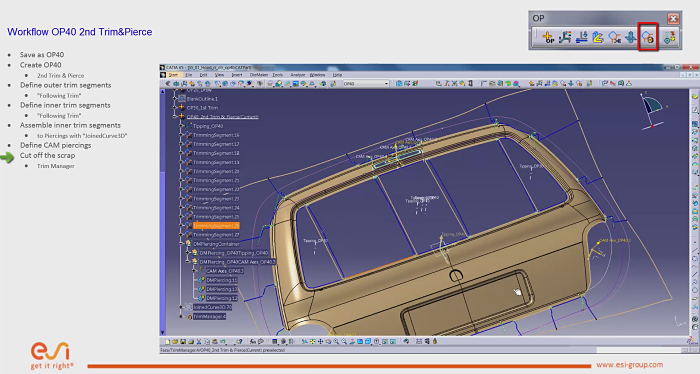

  • OP40 creation,
    • Inner and Outer trim definition with following trim, Assembly of the inner trim segments
    • CAM piercing
    • Trim manager with scraps
